2016+ Honda L15B Port Injection Kit

PRL Motorsports
$259.99
$259.99
Sold out

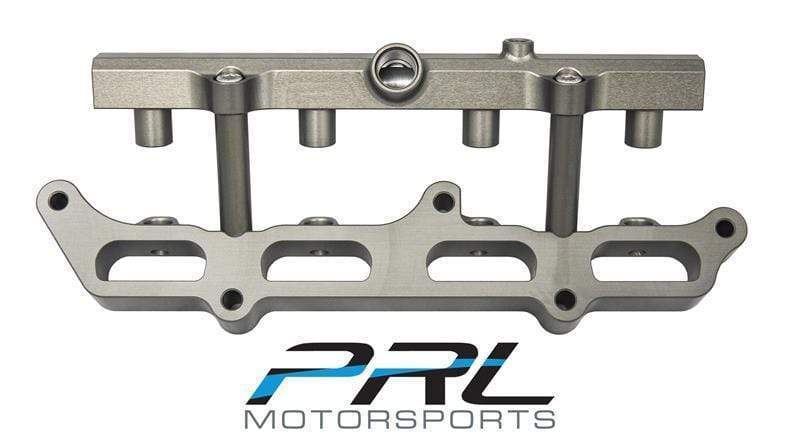

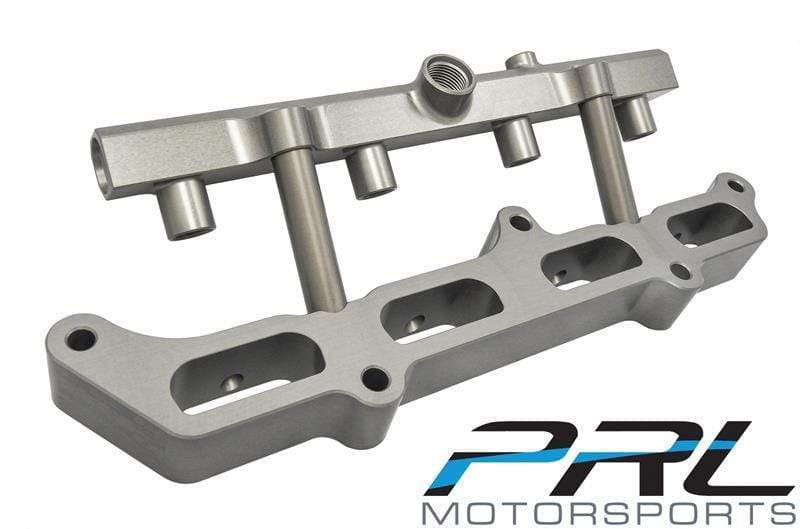

Our port injection kit for the 1.5L Turbo L15B Honda Accord / Civic / CR-V & More permits the use of port injectors for additional fueling on high-powered engines by installing between the intake manifold and cylinder head. The port injectors are placed at a specific angle for proper fuel atomization. Please note that this does NOT replace the factory direct injection system.

Kit Includes:
  • Anodized billet 6061 intake manifold adapter plate w/ injector ports

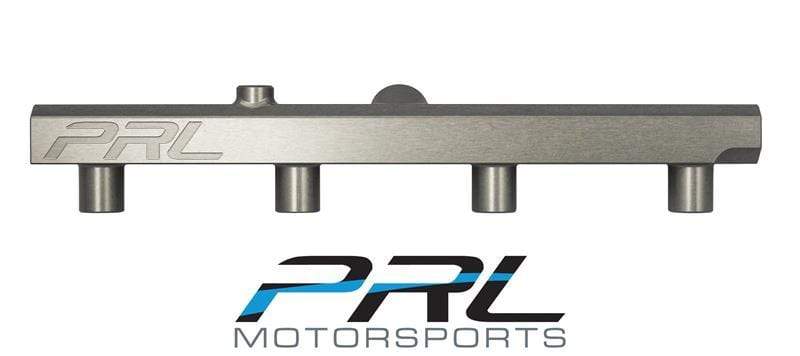

  • Anodized billet 6061 fuel rail w/ (3) ports machined for -8AN ORB female threads & (1) port for 1/8" NPT female threads
  • Anodized stand-offs
  • All stainless hardware required for install
  • 1/8" NPT sealed pipe plug
  • (Optional injectors)
*Users are responsible for sourcing an injector controller, wiring, fittings, fuel hose, etc.

*Designed for use with Radium Engineering Fuel Damper (or similar)

*Due to the thickness of the Port Injection Kit intake manifold adapter plate, a custom or additional coupler hose is needed to connect the charge pipe to the throttle body. We are currently working on a solution for this as well.

*Designed around industry standard Bosch EV14 style injectors (48mm Height), which is commonly used by brands like Injector Dynamics, Deatschwerks, Fuel Injector Clinic, Fuel Injector Development, etc.
