Description
Fits all 2017-2021 Civic Type-R FK8
Fits all variant models including RHD, International Models, Etc.
Fits Factory Intake System or Pair with our High Volume Intake System for optimal performance.
Also fits 2018+ Honda Accord 2.0T when used in conjunction with our Turbocharger Inlet Pipe Installation Kit and Intake Conversion Hose, or with DIY installation
Overview
TURBO INLET PIPE INSTALL GUIDE
Technical Notes:

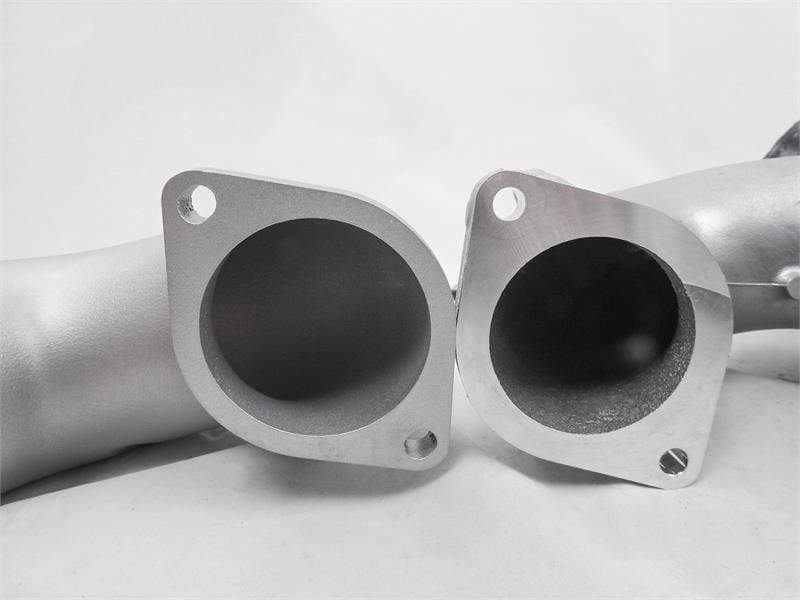

Maximize your FK8's engine intake system and turbocharger potential with the PRL Motorsports Turbocharger Inlet Pipe Kit. This kit is a direct bolt-on upgrade that eliminates intake airflow restriction before the turbocharger, allowing the turbocharger to operate more efficiently. Our design utilizes a cast aluminum inlet piece to allow smooth transition from the gasket-matched 64mm ID compressor inlet to a 80mm OD / 78mm ID outlet throughout the Titanium crossover pipe. This kit is the largest inlet pipe available and offers over a 50% increase in airflow volume in comparison to the factory inlet pipe! Increased bottom-end power and spool.

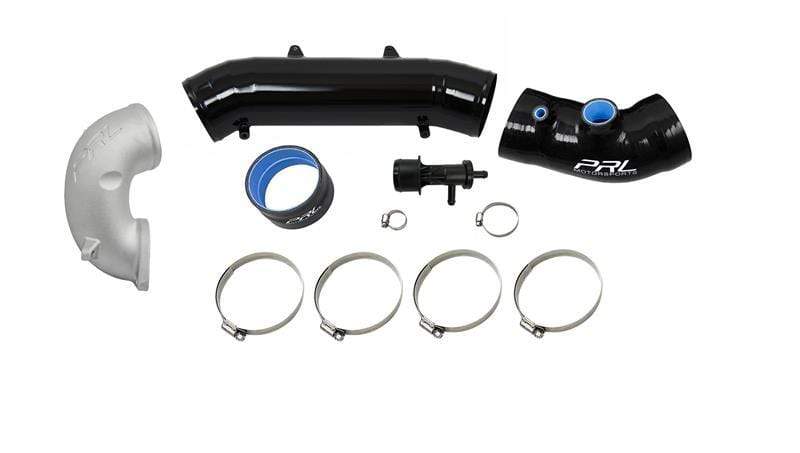

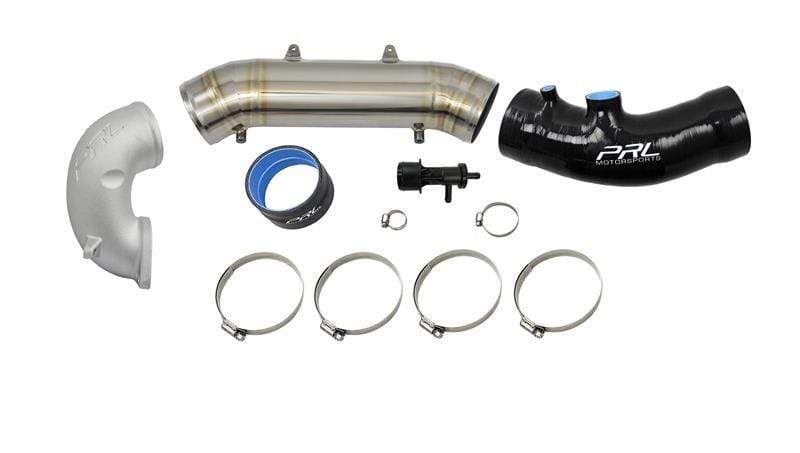

Kit Includes:

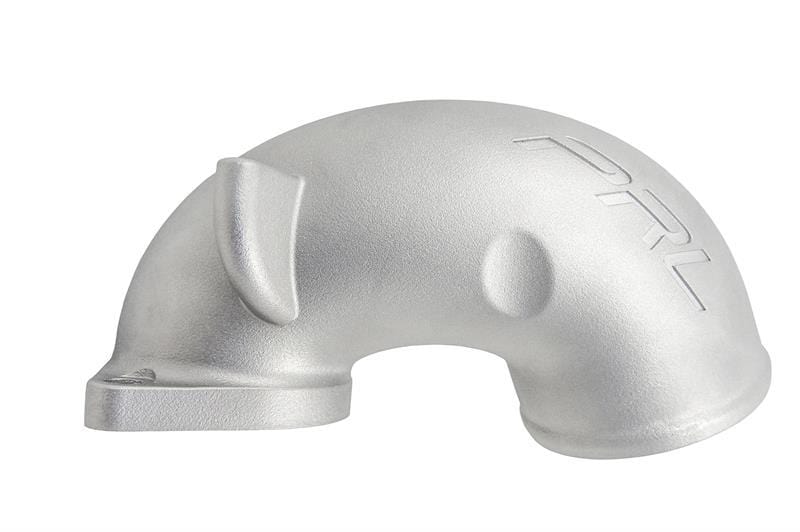

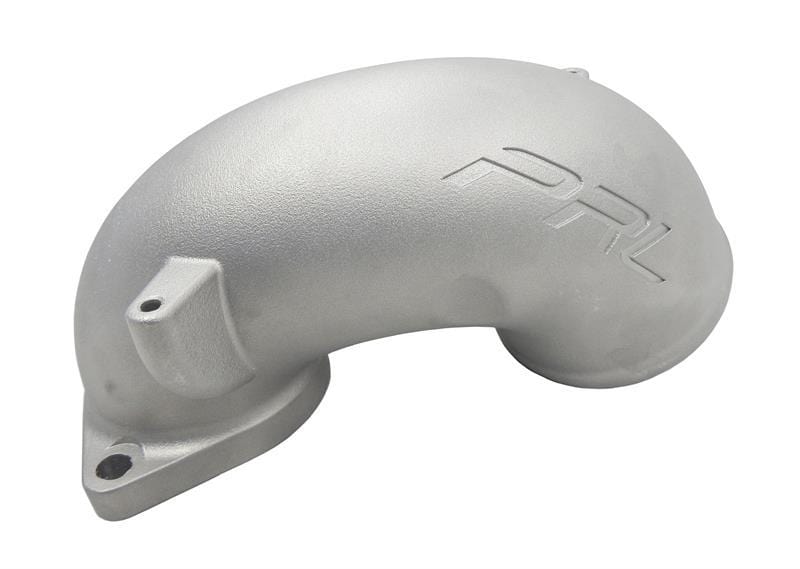

(1) Cast Aluminum Inlet Piece

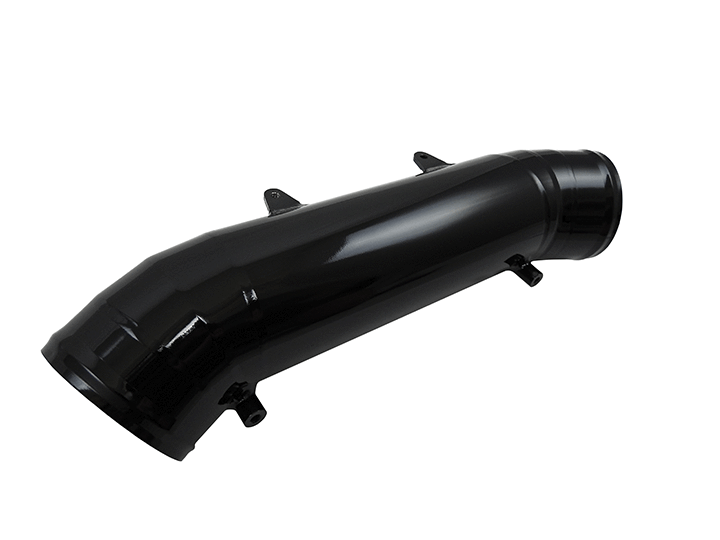

(1) 80mm OD Titanium Inlet Pipe
(2) High-Temp 4-Ply Silicone Coupler(s)
(6) 304 Stainless Steel Interlocking Worm Clamps
(1) Injection Molded Evap Purge Fitting (HVI Customers are to Use the Supplied Fitting with Their HVI)
