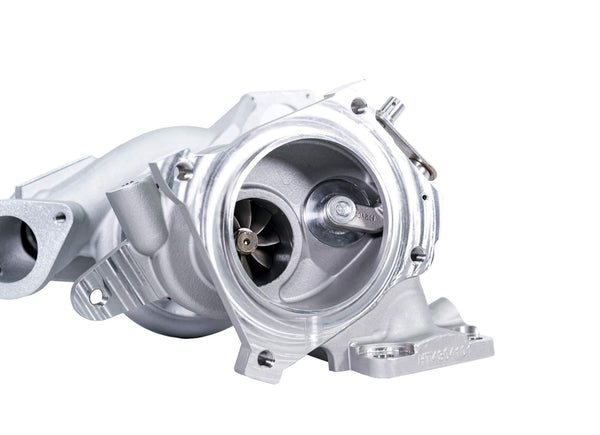

The PRL Motorsports P700 Drop-In Turbocharger Upgrade for Honda / Acura 2.0L Turbo platforms offers 600+ horsepower capabilities for Honda's 2.0L Turbo K20C Engines without sacrificing spool. A billet 304 stainless steel, dual ceramic ball bearing CHRA was implemented for reduced weight and improved durability. Factory oil and coolant lines are retained, as well as the factory bypass valve and wastegate actuator. Increased cooling capacity has been provided by the CHRA's larger water jacket.
Our High Efficiency compressor wheel is significantly taller than most billet compressor wheel upgrades and features the latest technology in aerodynamics (tapered tip exducer, cutback design on blade top edge) for optimal spool and power. A larger compressor wheel diameter in comparison to our P600 turbocharger allows for drastically decreased shaft speeds. This High Efficiency Turbine Wheel also features the latest technology in aerodynamics for optimal spool and power. A larger wastegate actuator bore also lowers backpressure.
- Cast 304 Stainless Steel, Dual Ceramic Ball Bearing CHRA
- Cast Aluminum, Stock Location Compressor Housing w/ Anti-Surge Inlet

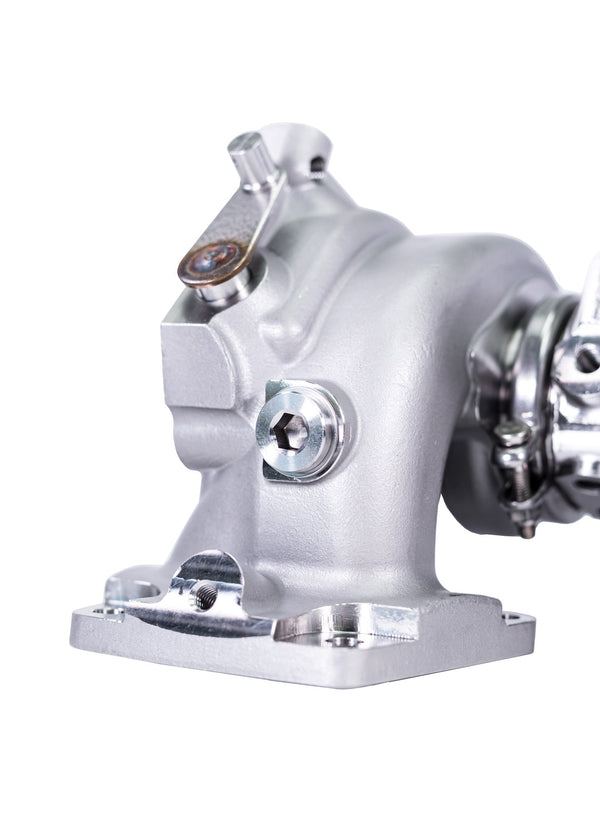

- Cast 304 Stainless Steel Turbine Housing w/ Integrated o2 Sensor Bung for Compatibility w/ Accord, RDX & TLX

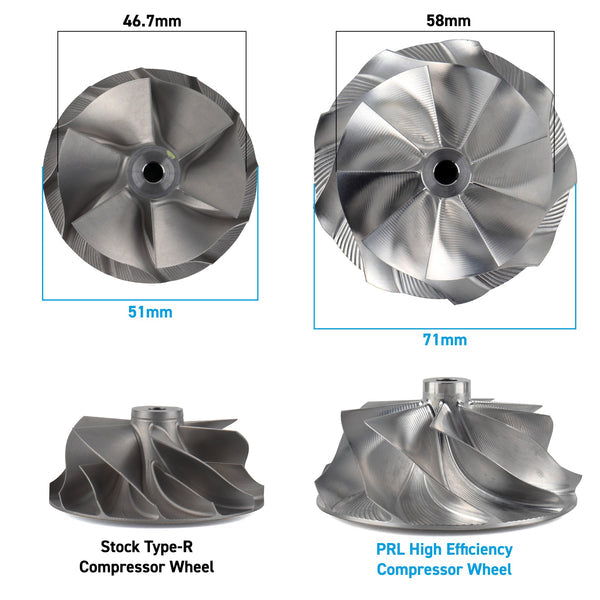

- High Efficiency Point-Milled 9-Blade Billet 7075 Aluminum Compressor Wheel (58mm Inducer, 71mm Exducer)
- High Efficiency Inconel 713C 9-Blade Turbine Wheel (54mm Inducer, 49mm Exducer)
- Increased Wastegate Diameter
- P700 Turbocharger Assembly
- Premium Mounting Hardware & Gasket Kit
- Oil Feed Filter/O-Ring Assembly
- Oil Feed Crush Washers
Please make sure (both) supplied copper crush washers are installed correctly (one on top and one on bottom of banjo fitting, sandwiched by banjo bolt. Factory banjo bolt torque spec is 35 nm or 25.86 ft/lbs.
- REQUIRES ECU CALIBRATION (BASEMAP FOR FK8 CIVIC TYPE-R AVAILABLE IN HONDATA SOFTWARE)
- TURBOCHARGER MAINTENANCE WRITEUP
- 100% DROP-IN, FACTORY LOCATION TURBO CHARGER UPGRADE FOR 2017-2021 HONDA CIVIC TYPE-R
- ACCORD, TLX & RDX REQUIRE THE FOLLOWING PARTS:
Fits all 2017-2021 Honda Civic Type-R
Fits all 2018+ Honda Accord 2.0T
Fits all 2019+ Acura RDX 2.0T
Fits all 2021+ Acura TLX 2.0T
Fits all variant models including RHD, 10AT, 6MT, International Models, Etc.
